Mainboard MSI PRO X870-P Wifi | SK AM5, 4 x DDR5, Wifi/Bluetooth

Mainboard MSI PRO X870-P Wifi | SK AM5, 4 x DDR5, Wifi/Bluetooth - ảnh 1

Mainboard MSI PRO X870-P Wifi | SK AM5, 4 x DDR5, Wifi/Bluetooth - ảnh 2

Mainboard MSI PRO X870-P Wifi | SK AM5, 4 x DDR5, Wifi/Bluetooth - ảnh 3

Mainboard MSI PRO X870-P Wifi | SK AM5, 4 x DDR5, Wifi/Bluetooth - ảnh 4

Mainboard MSI PRO X870-P Wifi | SK AM5, 4 x DDR5, Wifi/Bluetooth - ảnh 5

Giảm 7% Trả góp 0% Còn hàng

Mainboard MSI PRO X870-P Wifi | SK AM5, 4 x DDR5, Wifi/Bluetooth

SKU: Danh mục: Mainboard - Bo mạch chủ

8.190.000₫ 8.800.000₫

Tiết kiệm 610.000₫ (7%)

Quà tặng & Ưu đãi kèm theo

Túi đựng máy tính cao cấp

Phiếu bảo hành chính hãng 24 tháng

Cài đặt phần mềm miễn phí

Số lượng:

Trả sau đến 12 tháng với

fundiin

Bảo hành chính hãng

24 tháng, 1 đổi 1 trong 30 ngày

Giao hàng nhanh

2h nội thành, 1-2 ngày tỉnh

Đổi trả dễ dàng

Miễn phí trong 30 ngày

Hỗ trợ kỹ thuật

Miễn phí 24/7 qua hotline

Chia sẻ:

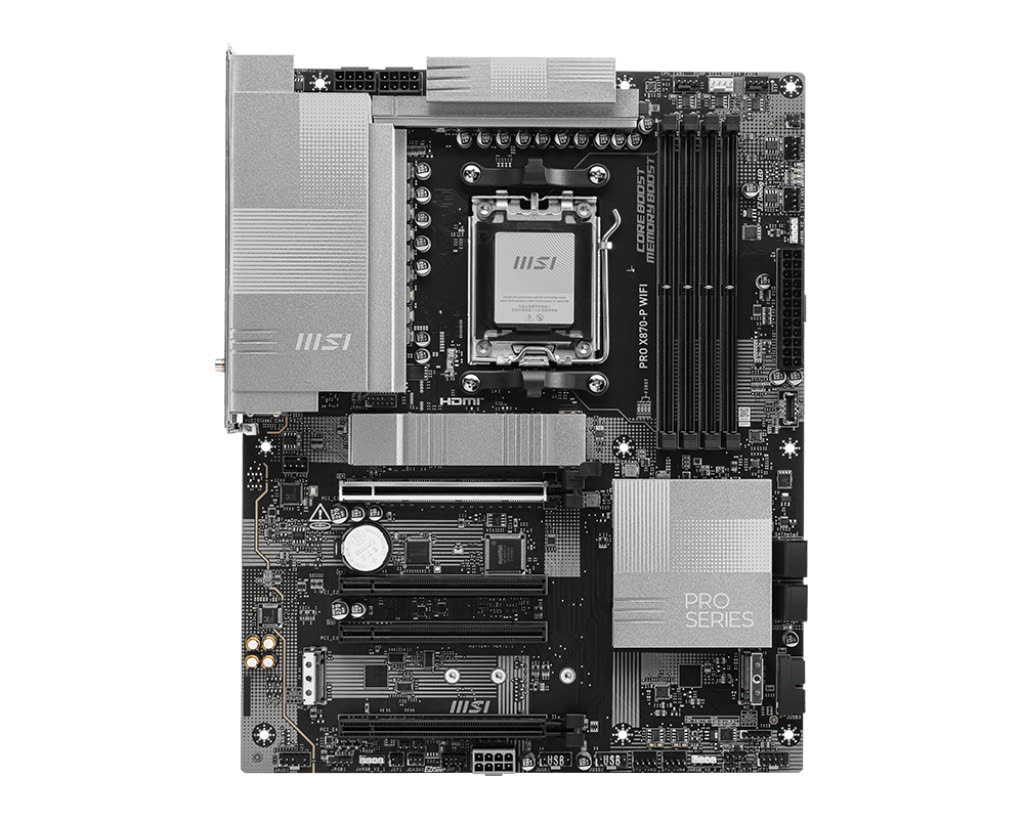

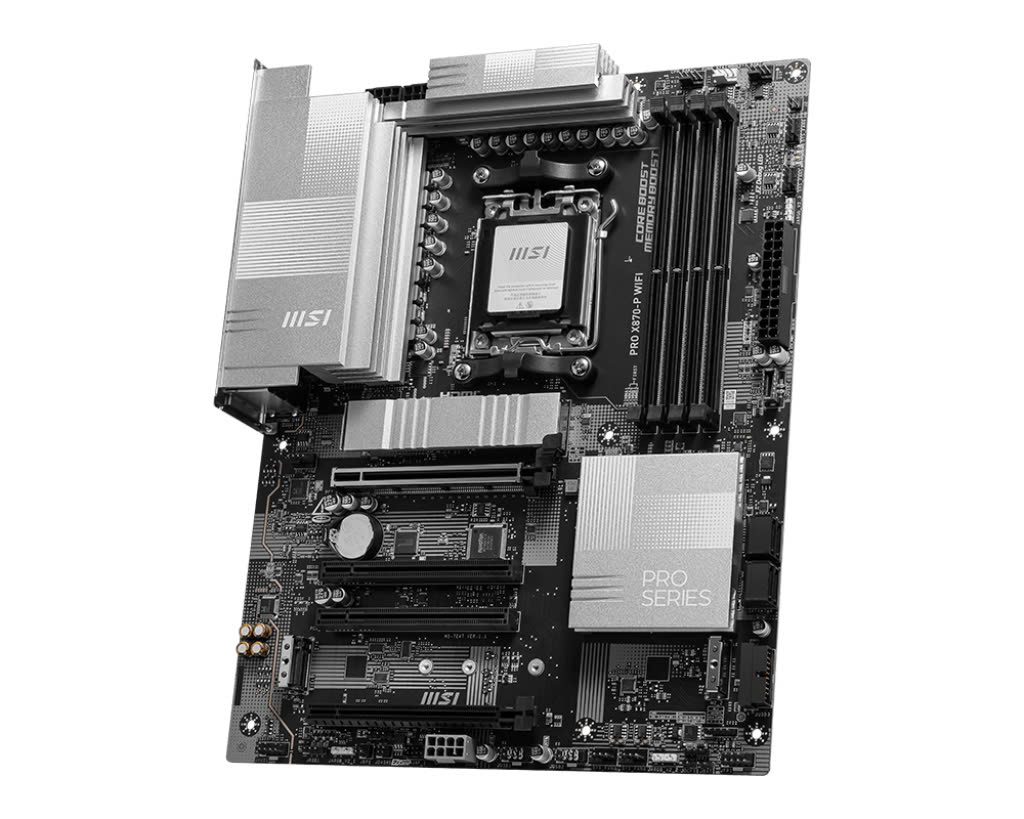

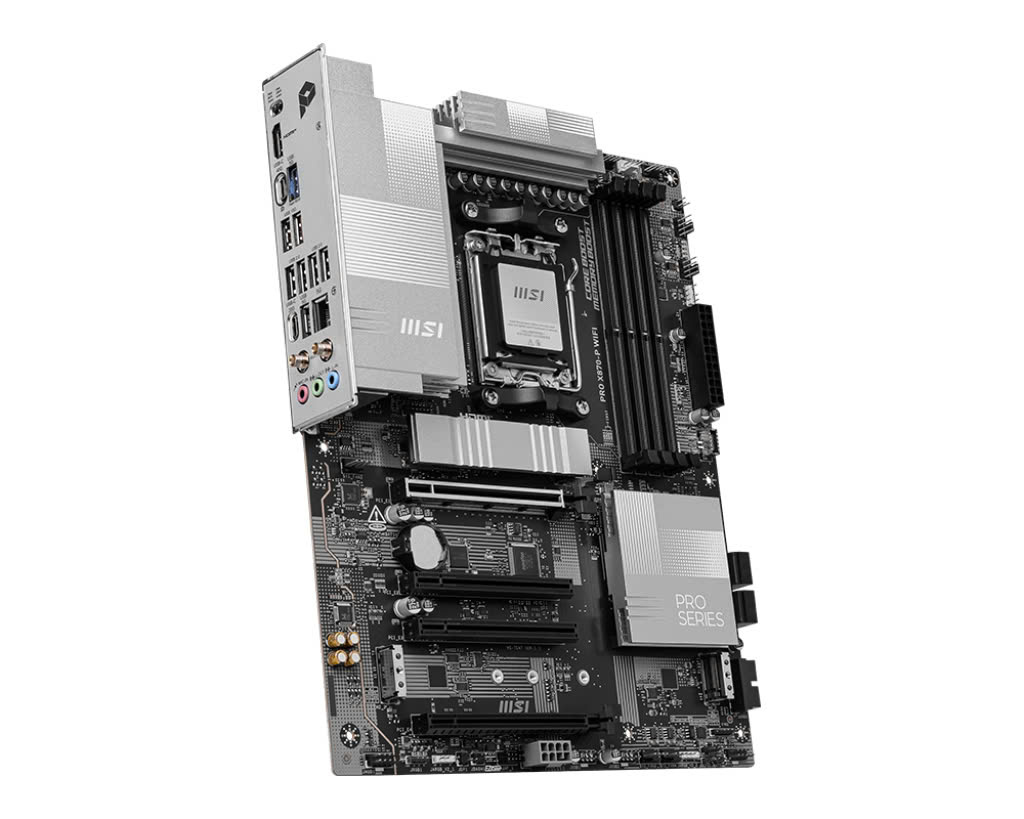

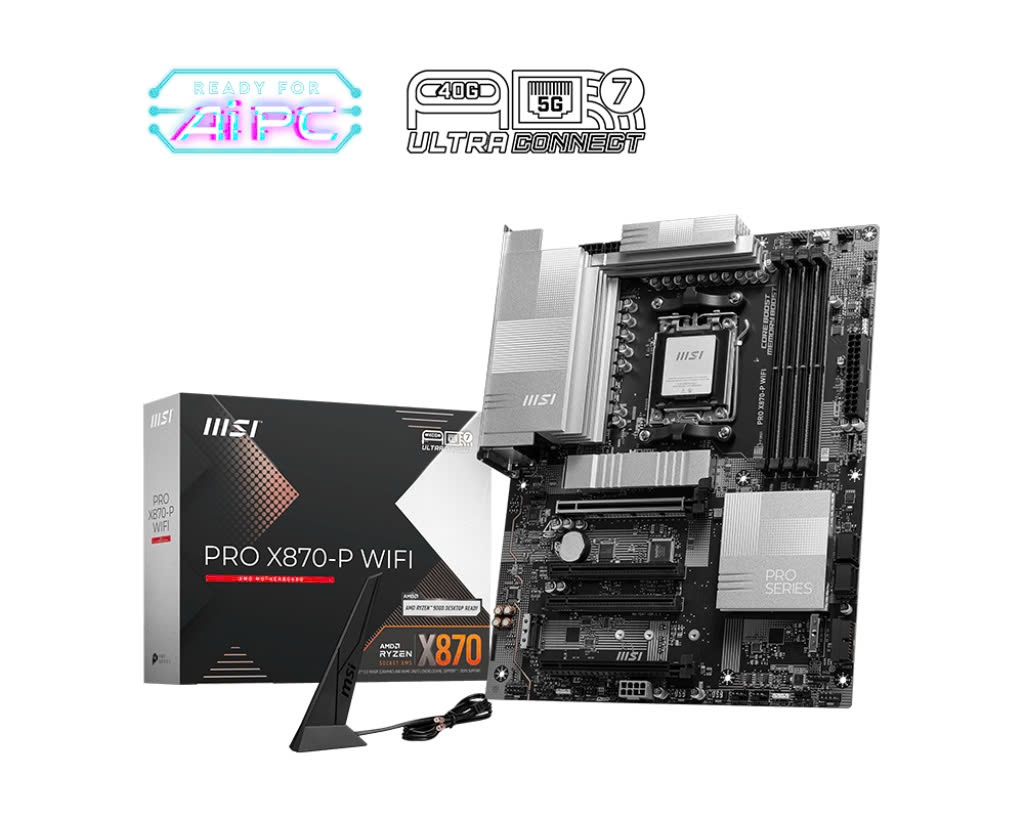

Mainboard MSI PRO X870-P Wifi

Mainboard MSI PRO X870-P Wifi

Mainboard MSI PRO X870-P Wifi có thiết kế đơn giản với tông màu bạc hài hòa, hoàn toàn phù hợp với các dàn PC lấy tông màu trắng và đen làm chủ đạo. Sản phẩm được thiết kế với nhiều tính năng độc quyền của MSI, Wi-Fi 7 đầy đủ với EZ Antenna, 5G LAN, PCIe 5.0 M.2 với EZ M.2 Shield Frozr II và cấp nguồn bổ sung cho khe PCIe, Mainboard MSI PRO X870-P Wifi sẵn sàng cho bộ xử lý AMD Ryzen™ 9000 series.

Mainboard MSI PRO X870-P Wifi

Thông Số Kỹ thuật Mainboard MSI PRO X870-P Wifi

Chipset	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN	Realtek® 8126VB 5G LAN
Internal IO	2x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED

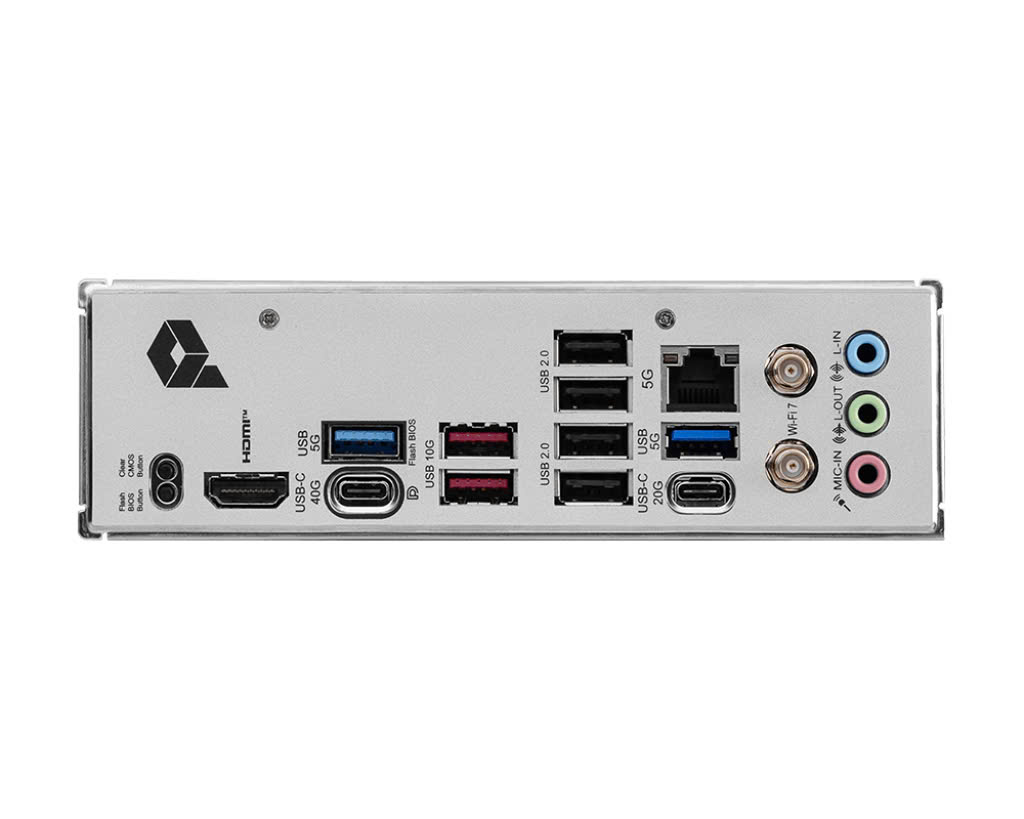

BACK PANEL PORTS	Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C
OPERATING SYSTEM	Support for Windows® 11 64-bit
