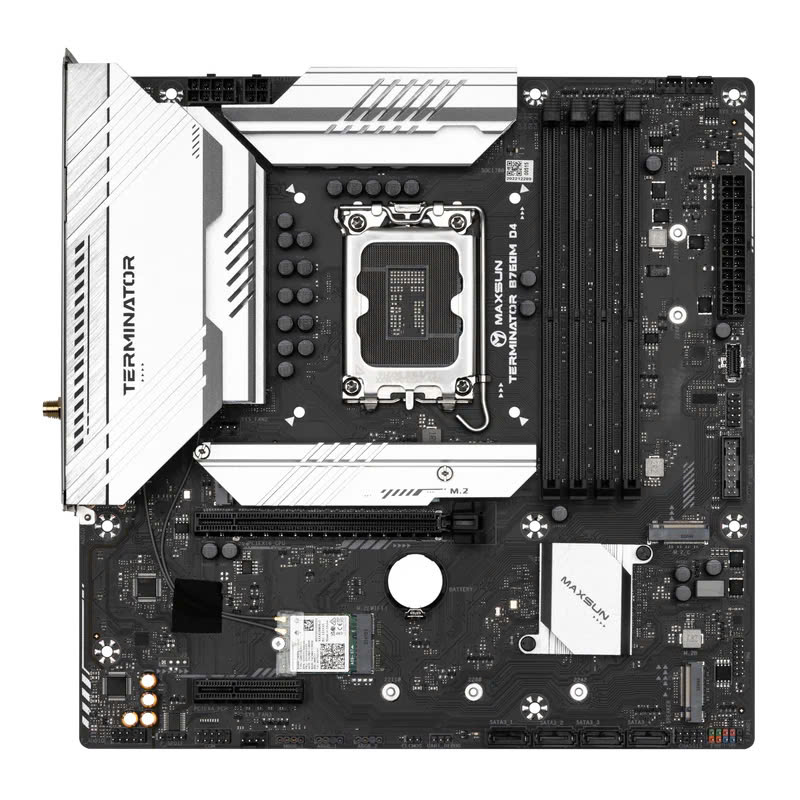

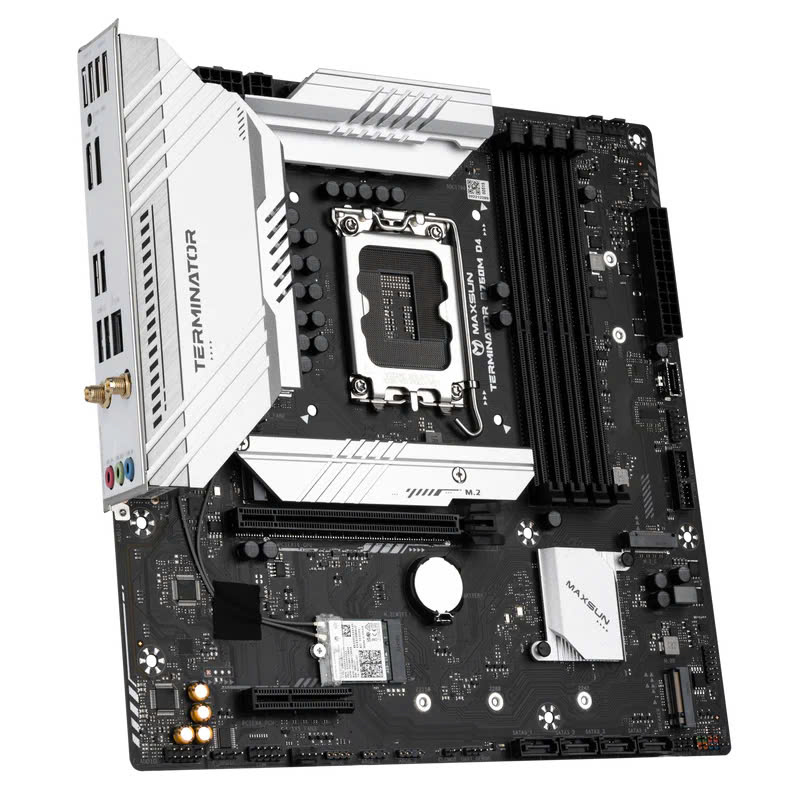

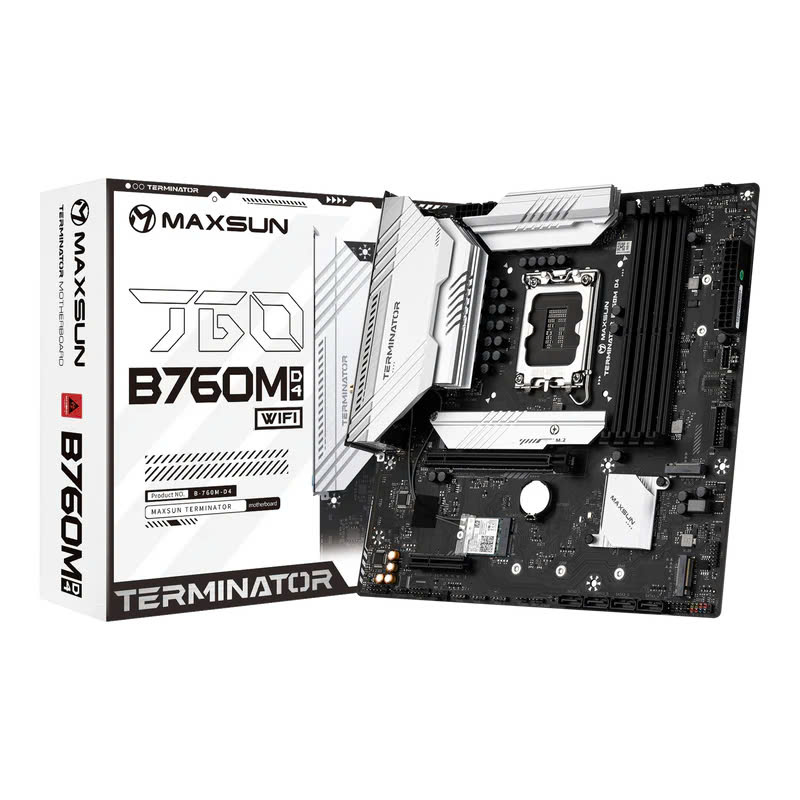

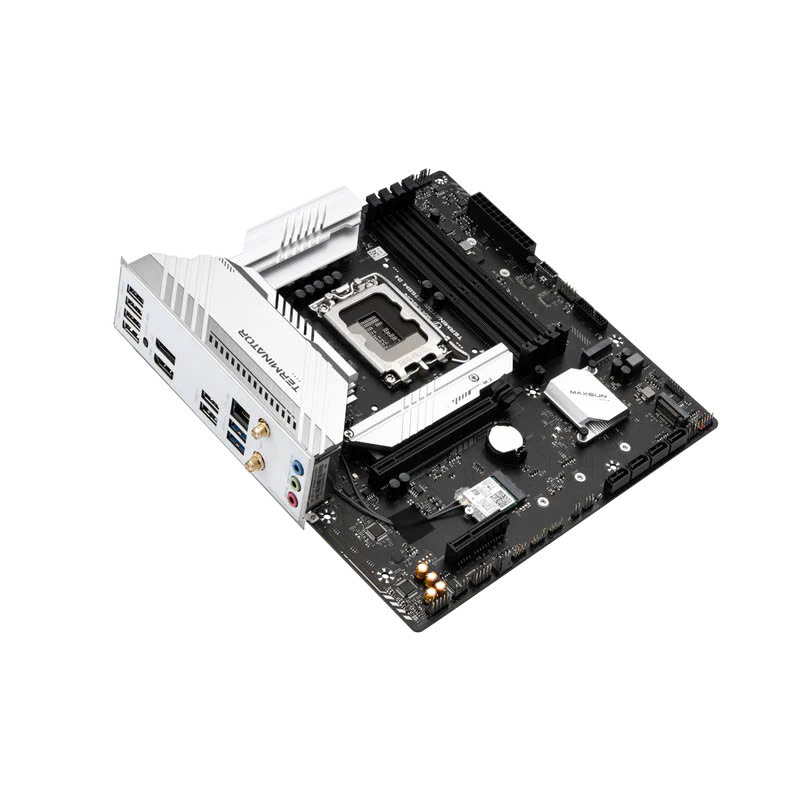

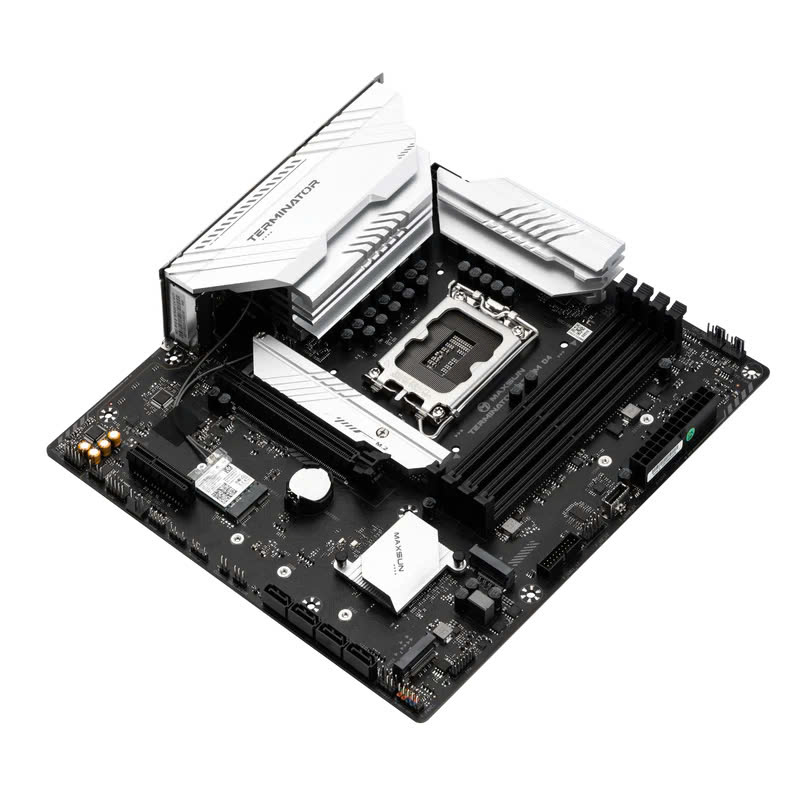

Mainboard MAXSUN Terminator B760M D4 WIFI | LGA 1700

Mainboard MAXSUN Terminator B760M D4 WIFI | LGA 1700

Giới thiệu Mainboard MAXSUN Terminator B760M D4 WIFI | LGA 1700

Mainboard MAXSUN Terminator B760M D4 WIFI | LGA 1700 hỗ trợ

• 10 phases core 50A Dr.Mos power supply
• 6 layers 2oz PCB
• Alloy Radiator Armor
• 3*M.2
• 2.5G Networkcard
• 20Gbps USB Type-C

Thông tin chi tiết

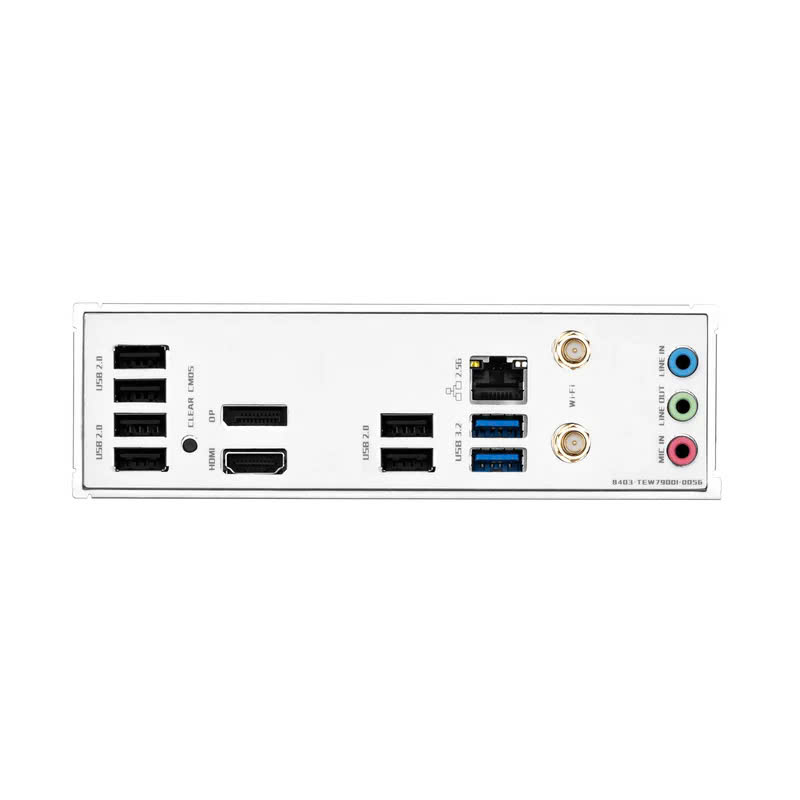

CHIPSET INTEL B760 CPU Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode ONBOARD GRAPHICS 1x DisplayPort 1.4 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. EXPANSION SLOT 1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot STORAGE M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB *Front USB (Total 5 ports) 1x USB 3.2 Gen2x2 Type C 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 8 ports) 2x USB 3.2 Gen1 Type A 6x USB 2.0 LAN Realtek® RTL8125BG 2.5G LAN WIRELESS / BLUETOOTH Intel® Wi-Fi 6 AX101 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz* (80MHz) up to 600Mbps Supports 802.11 ax Supports Bluetooth® 5.2 AUDIO Realtek® ALC897 Codec 5.1-Channel High Definition Audio INTERNAL I/O 1x 24-pin Power Connector(ATX_PWR) 1x 8+4-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x 4-Pin SPEAKER 1x Front Audio 1x M.2 slots (Key-E) 1x COM_A Port 1x TPM pin header(Support TPM 2.0) LED FEATURE 4x Distributed Debug LED OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit FORM FACTOR M-ATX (245mm x 245mm)
